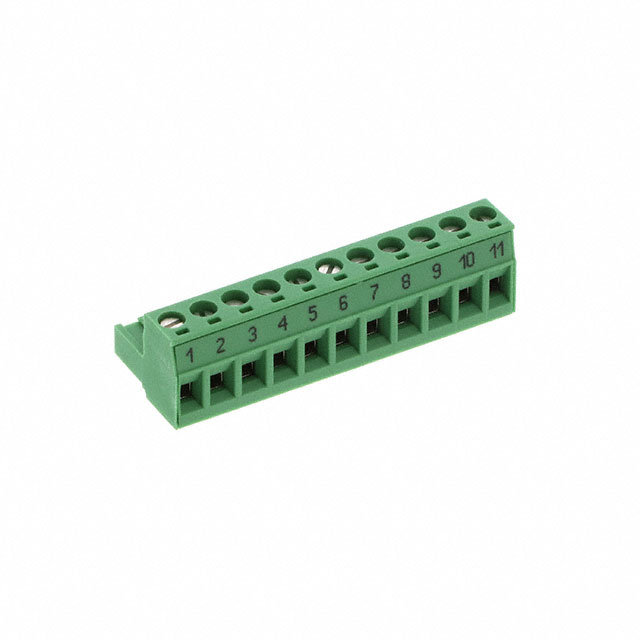

Phoenix Contact 1760129

TERM BLOCK PLUG 11POS STR 5.08MM

Manufacturer: Phoenix Contact
Manufacturer's number: Phoenix Contact 1760129
Package: Bulk
Datasheet: PDF
Stock: 37
SKU: 1760129
Pricing:we created an exceptionally flexible and competitive pricing policy.

Quantity:

Add to Cart

Unit Price: $10.1600

Ext Price: $10.1600

Details

Parameters
Mounting Type	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	630 V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm²	0.2-2.5mm²
Color	Green
Operating Temperature	-
Contact Mating Finish	Tin
Features	Positions Stamped, Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	M3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length	7mm
Contact Material	-
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	-
Insulation Height	0.591" (15.00mm)
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Standard Package	50
Mfr	Phoenix Contact
Series	COMBICON MSTB
Package	Bulk
Product Status	Active
Type	Plug, Female Sockets
Number of Positions	11
Positions Per Level	11
Number of Levels	1
Pitch	0.200" (5.08mm)
Header Orientation	-
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp

11 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
